SPECIFICATIONS
Brand Name: HAMROLTE
Certification: CE
Choice: yes
Color: WHITE
Connectivity: Closed System/CCTV Wired

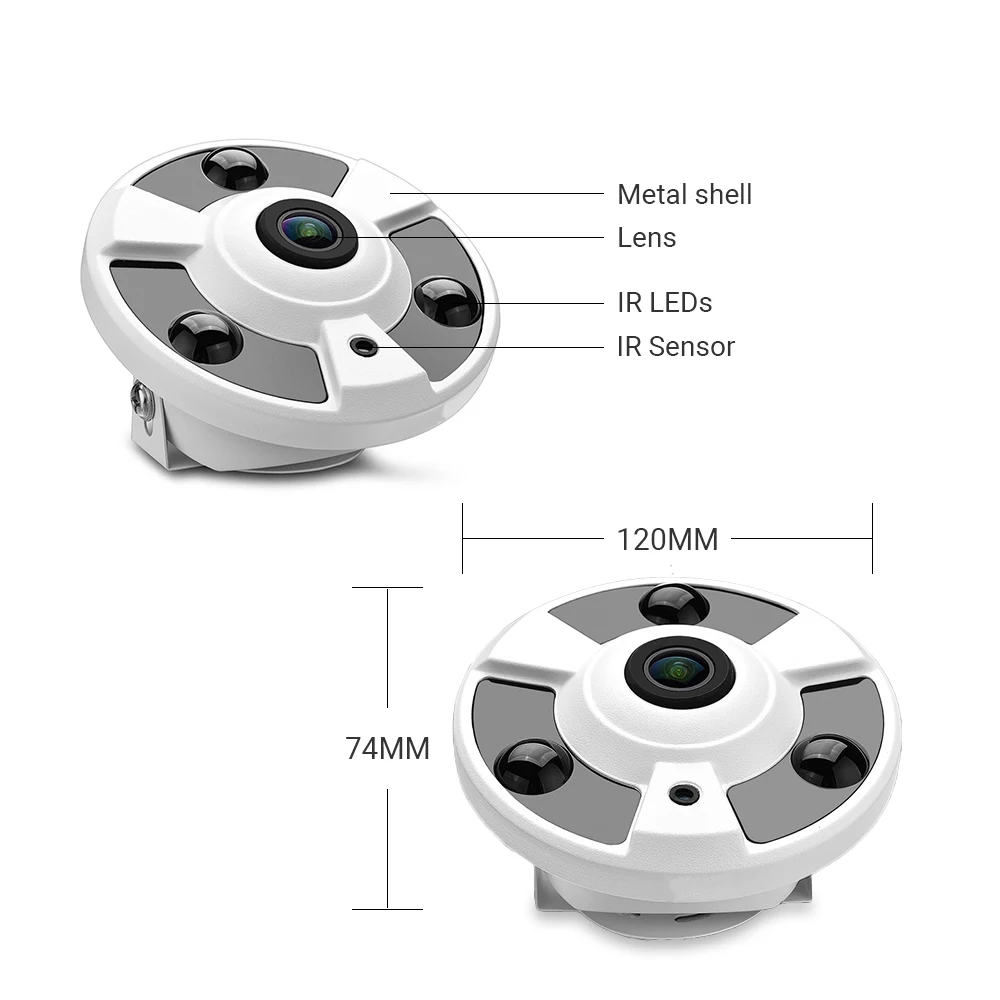

Dimensions (L x W x D)(mm): 11.5cm(L)* 8M(w)
High Definition: 5.0 Megapixels
High-concerned chemical: None
IR Distance(m): Max20M
Installation: Side
Internal Storage: None
Lens (mm): 1.7mm
Megapixels: 5 MP
Minimum Illumination(Lux): 0.01Lux
Model Number: S-SDQJ3L
Origin: Mainland China
Power Consumption(W): <3W (Daytime)
Power Supply: Normal
Power Supply(V): DC 12V
Sensor: CMOS
Smart home platform: Other
Style: Bullet Camera
Supported Operating Systems: No
Warm Tips:

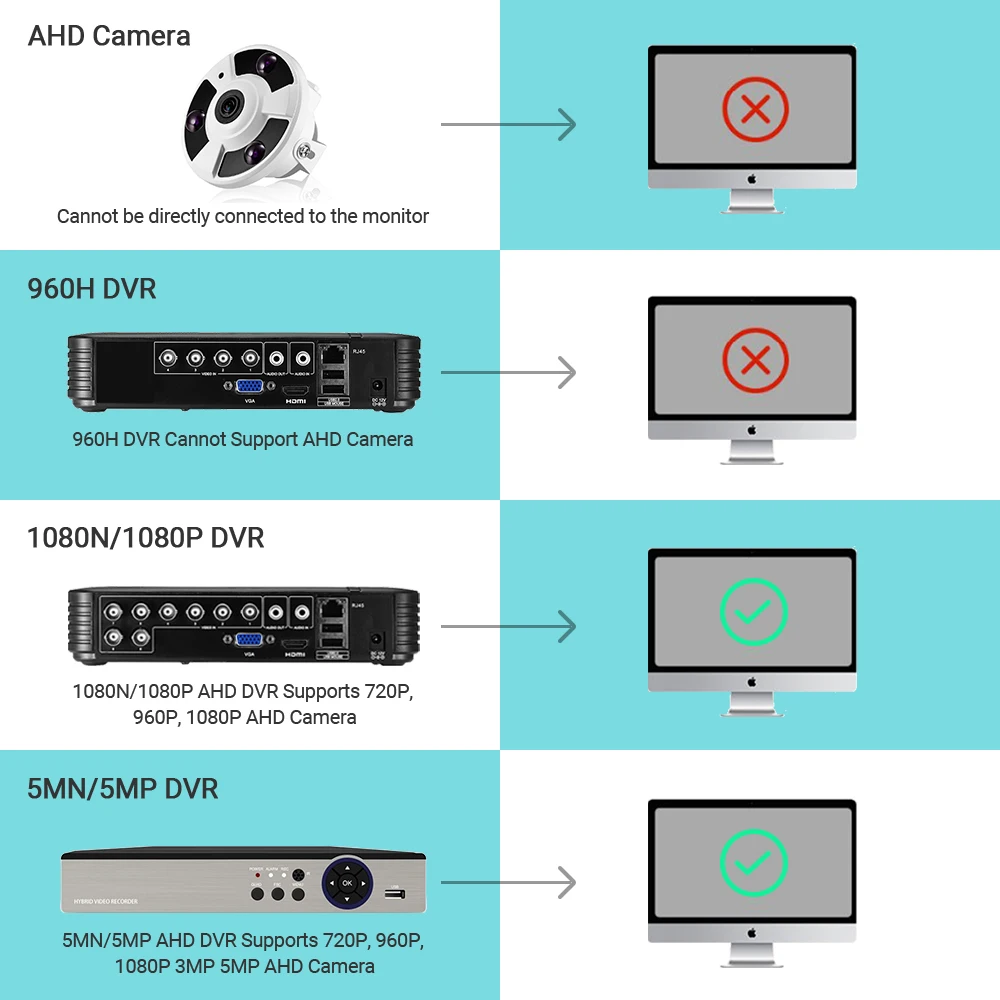

1:This camera is AHD camera, need to connect with AHD DVR,720P and 1080P need to connect with at least 1080N AHD DVR, 5MP need to connect with at least 5M-N.
2:Can't connect with 960H analog dvr or TV monitor directly.
Main Specifications:
* Sensor: 1/3” CMOS F37 For 1080P;1/2.7’ CMOS K03 For 5MP
* Video Resolution:1080P(1280*1080P);5MP(2560*1920)
* Video Frame Rate:PAL: 25fps ; NTSC: 30fps
* 1.7mm fish eye lens, max 180degree angle
* Minimum Illumination: color：0.01Lux@（F1.2，AGC ON），0Lux with IR
Black & White：0.01Lux@（F1.2，AGC ON），0Lux with IR
* Day and Night Function: Support IR-CUT
* Infrared LED:3pcs IR LED,20m max IR distance
* Power Supply:DC12V±10%
* Transmission Distance:Over 500m via 75-3 coaxial cable
* Temperature and Humidity: - 10 ℃ ~ 60 ℃, humidity is less than 90% (no condensation)
* Consumption: <5W
* Material:Metal,indoor use only
Packing Included:
1xAHD Camera
1xSrews Bag

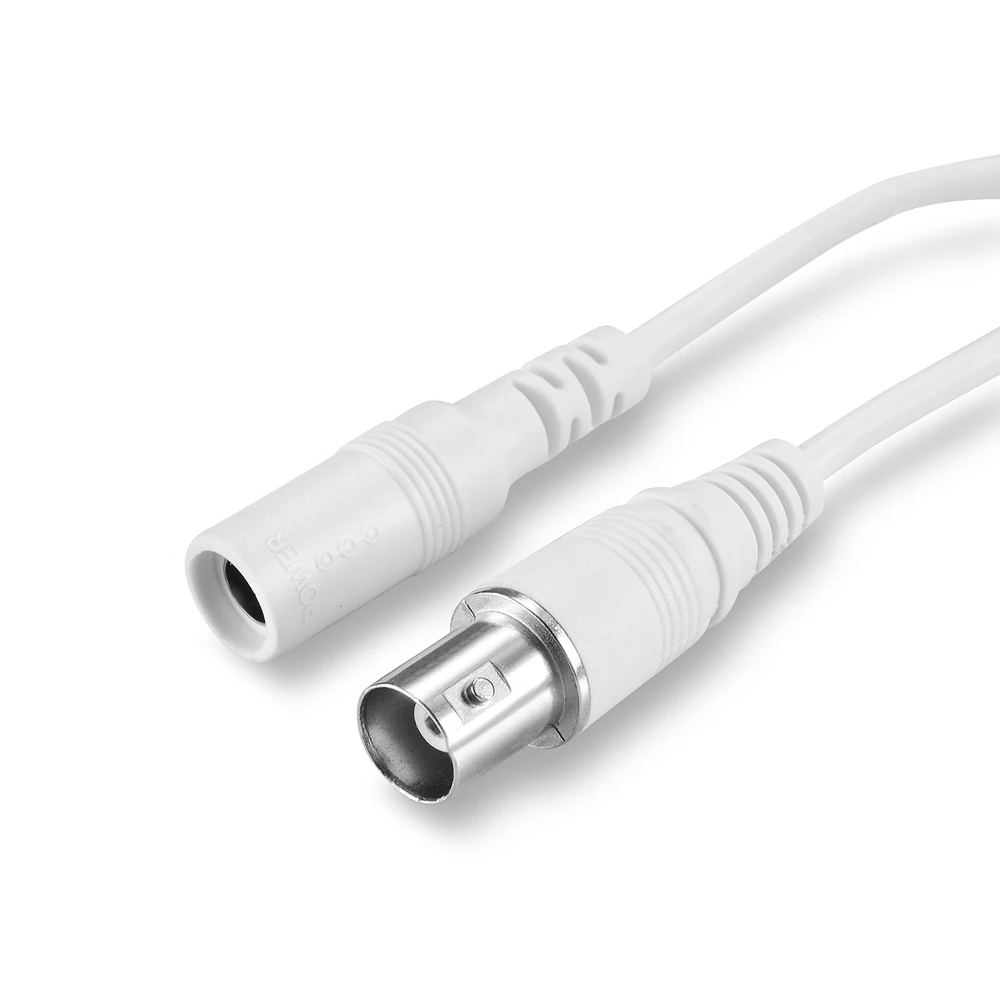

You may need the BNC+DC extend cable and dvr for this camera:
* 5MP 1080P 720P Resolution Optional
* Max 180 dgree wide angle
With 5MP 1.7mm fisheye lens,up to 180degree wide angle.One Panoramic camera equal with 3pcs normal camera .
* Day & Nightvision
Built in IR-Cut filter, day and night vision automatic switching，3pcs array led, up to 20m IR nigtvision distance.

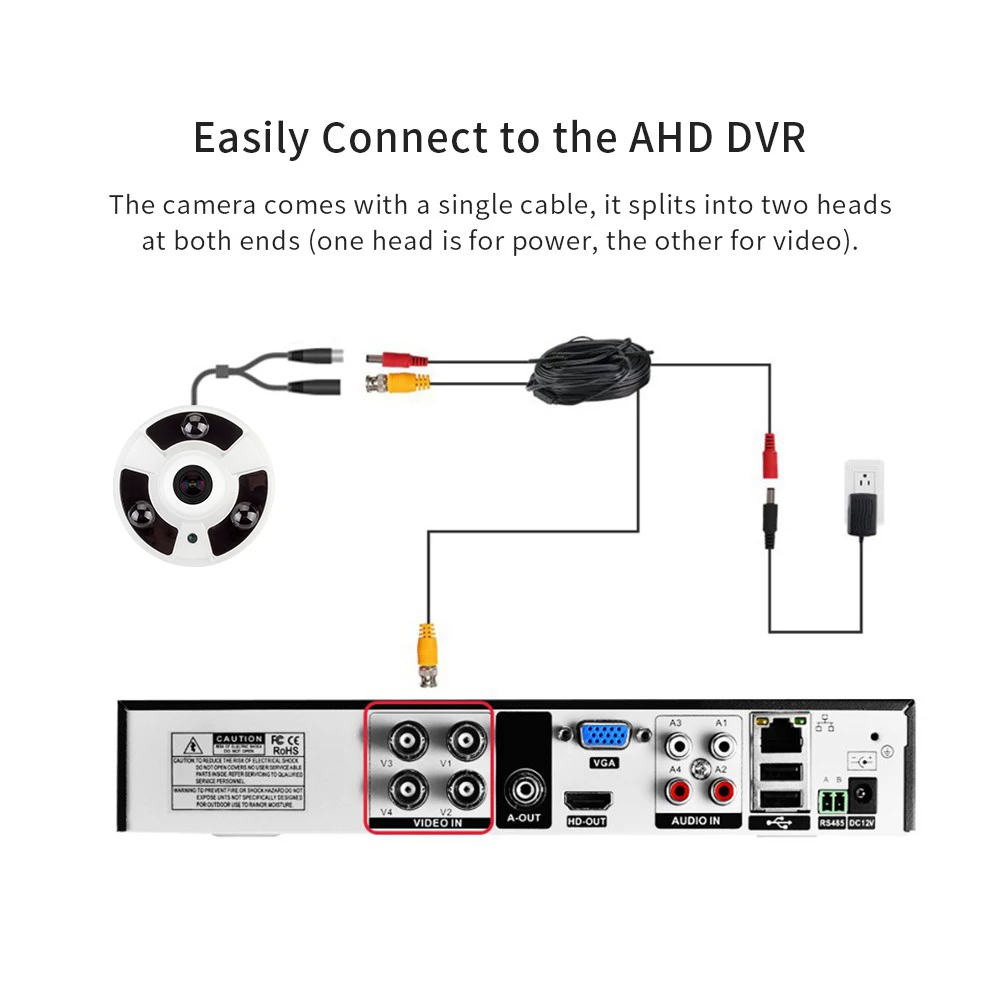

* Should connect with AHD DVR
Need to connect with AHD DVR, can't connect with 960H analog dvr or TV monitor directly.
You may need the DVR to work with this camera:
